Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	2MB DRAM
Video Types Supported	VGA, EGA
Highest Resolution Supported	1600 x 1200
Data Bus	64-bit PCI

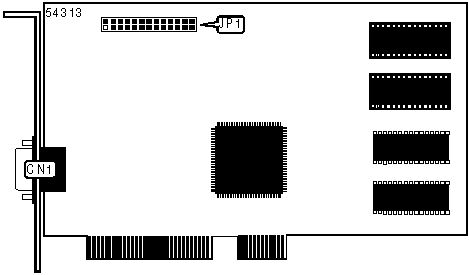

CONNECTIONS
Function	Label	Function	Label
15-pin Analog video port	CN1	Feature Connector	JP1

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
1MB	(2) 256KB x 16	None
2MB	(2) 256KB x 16	(2) 256 x 16
