DIGITAL VISION, INC.
COMPUTER EYES 1024
|
Card Type |
Video frame grabber |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
16-bit ISA |
|

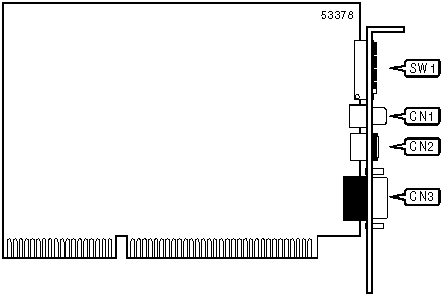

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Composite video in |
CN1 |
15-pin RGB video in |
CN3 |
|
S-Video in |
CN2 | ||
|
BASE I/O ADDRESS SELECTION | |||
|
Setting |
SW1/7 |
SW1/8 | |
|
260h |
Off |
Off | |
|
250h |
Off |
On | |
|
240h |
On |
Off | |
| » |
230h |
On |
On |
|
BASE MEMORY ADDRESS SELECTION | ||
|
Setting |
SW1/4 |
SW1/5 |
|
C0000h-C7FFFh |
Off |
Off |
|
C8000h-CFFFFh |
On |
Off |
|
D0000h-D7FFFh |
Off |
On |
|
D8000h-DFFFFh |
On |
On |
|
MEMORY ACCESS MODE | ||
|
Setting |
SW1/1 |
SW1/2 |
|
Memory access mode (performance mode) enabled |
On |
On |
|
Memory access mode (performance mode) disabled |
Off |
Off |
|
ZERO WAIT STATE | |
|
Setting |
SW3/1 |
|
Zero wait state enabled |
On |
|
Zero wait state disabled |
Off |
|
Note: Zero wait state is used in conjunction with memory access mode. Disable zero wait state if the card is being used with an older PC or a PC with a Bus clock faster than 8MHz. | |
