COLORGRAPHIC COMMUNICATIONS CORPORATION
WARP 4
|
Card Type |
Video card |
|
Video Chipset |
Tseng Labs ET4000/W32i |
|
Maximum Video Memory |
4MB DRAM (1MB per port) |
|
I/O Options |
VGA out (4) |
|
Data Bus |
16-bit ISA |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1024 x 768 |
|

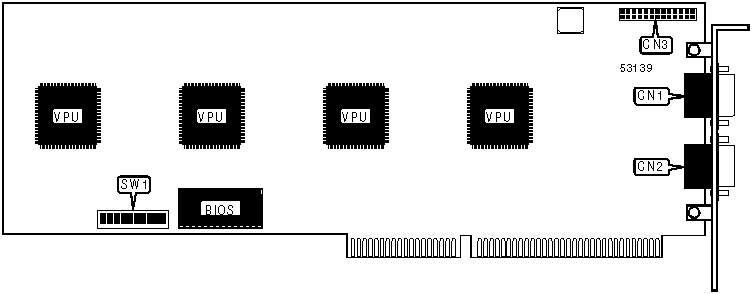

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video ports 2 and 4 |
CN1 |
Feature connector |
CN3 |
|
15-pin analog video ports 1 and 3 |
CN2 | ||
|
Note:Standard analog VGA connectors are provided on included adapter cables. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/7 |
Unidentified |
| » |
Factory configured - do not alter |
SW1/8 |
Unidentified |
| » |
Factory configured - do not alter |
SW1/9 |
Unidentified |
| » |
Factory configured - do not alter |
SW1/10 |
Unidentified |
|
BASE I/O ADDRESS SELECTION | |||
|
Primary |
Secondary |
SW1/1 |
SW1/2 |
|
32Ch |
328h |
On |
On |
|
33Ch |
338h |
On |
Off |
|
34Ch |
348h |
Off |
On |
|
35Ch |
358h |
Off |
Off |
|
BOARD NUMBER SELECTION | ||||
|
Setting |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
1 |
On |
On |
Off |
On |
|
2 |
On |
Off |
Off |
Off |
