Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	Unidentified
Data Bus	32-bit VESA Local Bus
Video Types Supported	XVGA

CONNECTIONS

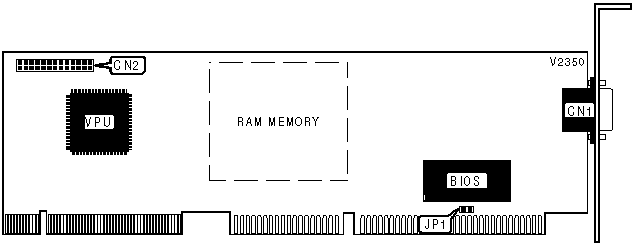

Function	Label	Function	Label
15-pin analog video port	CN1	VESA feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ 2/9 enabled	JP1	Closed
	IRQ 2/9 disabled	JP1	Open
