CHAINTECH COMPUTER COMPANY, LTD.
GL-2228
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
ALG2228 |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|

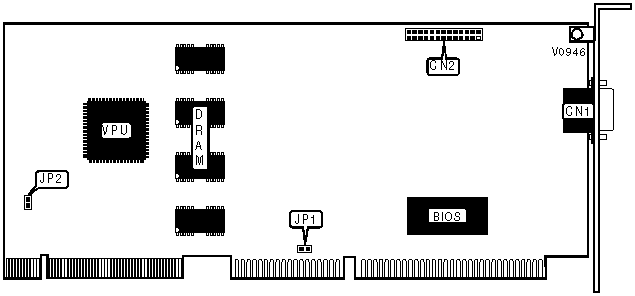

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
SYSTEM CLOCK SELECTION |
||
|
Setting |
JP1 |
|
|
» |
> 40MHz |
Open |
|
|
£ 33/40MHz |
Closed |
|
INTERRUPT SELECTION |
||
|
IRQ 9 |
JP2 |
|
|
» |
Disabled |
Open |
|
|
Enabled |
Closed |
