Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic CL542X
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

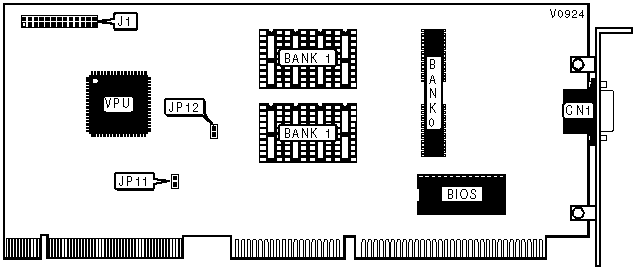

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	J1

DAC CONFIGURATION
Setting		JP12
»	Enabled	Open
	Disabled	Closed

INTERRUPT SELECTION
IRQ 9		JP11
»	Enabled	Closed
	Disabled	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 512 x 8	NONE
2MB	(2) 512 x 8	(8) 256 x 4
