DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH 64DRAM VLB VER. 1
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 Vision 864 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2048KB |
|

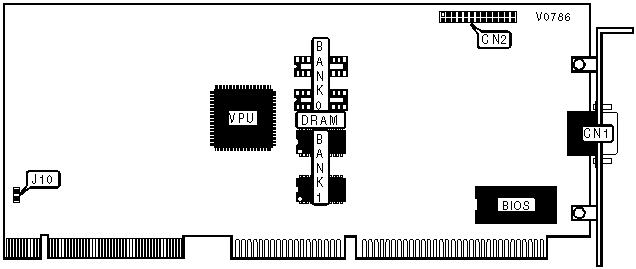

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA Feature connector |
CN2 |
|
IRQ9 INTERUPT SELECTION | ||
|
IRQ9 |
J10 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1024KB |
(2) 441000 |
NONE |
|
2048KB |
(2) 441000 |
(2) 441000 |
