Card Type	Video Card
Video Chip Set	S3 Virge/DX
Maximum Video Memory	4MB
Video Types Supported	XVGA
Highest Resolution Supported	1280x1024
Data Bus	64-bit PCI

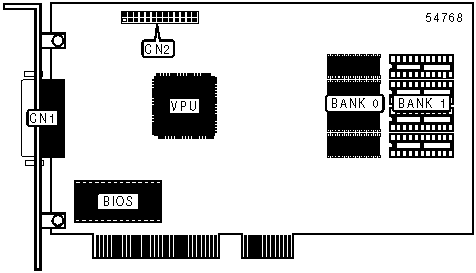

CONNECTIONS
Function	Label	Function	Label
VGA port	CN1	Feature connector	CN2

VIDEO MEMORY CONFIGURATION (DRAM/VRAM)
Size	Bank 0	Bank 1
2MB	(4) 512KB	None
4MB	(4) 512KB	(4) 512KB
