Card Type

Video card

Video Chip Set

ATI

Maximum Video Memory

4MB EDO DRAM

Video Types Supported

VGA

Highest Resolution Supported

1600 x 1200

Data Bus

32-bit PCI

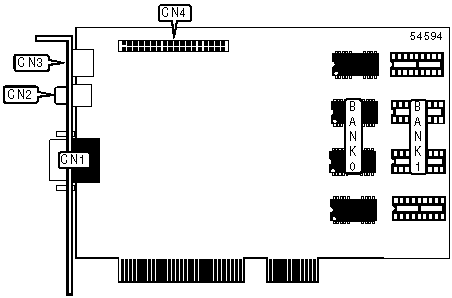

CONNECTIONS

Function

Label

Function

Label

Video port

CN1

Composite (RCA) out

CN3

S-video out

CN2

AMC connector

CN4

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(4) 256KB x 16

None

4MB

(4) 256KB x 16

(4) 256KB x 16
