BEST UNION ELECTRONICS CO., LTD.
MV-848T
|
Card Type |
Video capture/tuner card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
768 X 576 |
|
Data Bus |
32-bit PCI |
|

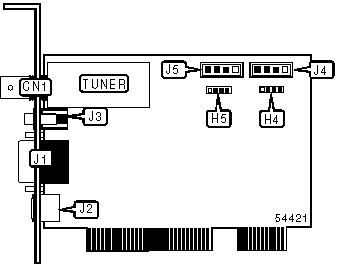

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
TV Tuner |
CN1 |
S-Video in |
J2 |
|
Audio out header |
H4 |
Tuner audio out |
J3 |
|
Audio in header |
H5 |
Audio out |
J4 |
|
Video in |
J1 |
Audio in |
J5 |
