ATI TECHNOLOGIES INC.
MACH32 PCI VGA (VRAM)
|
Card Type |
Video card |
|
Video Chip Set |
ATI |
|
Maximum Video Memory |
2MB VRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
32-bit PCI |
|

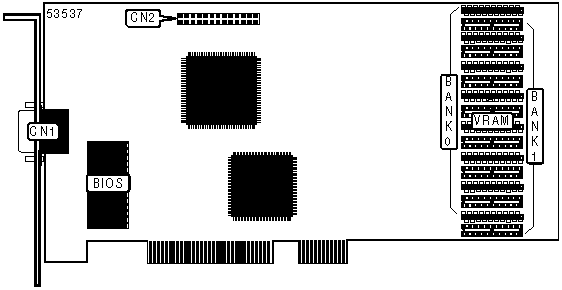

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15 -pin analog video port |
CN1 |
Feature connector |
CN2 |
|
VIDEO MEMORY CONFIGURATION (VRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(8)128KB |
None |
|
2MB |
(8)128KB |
(8)128KB |
