ARTIST GRAPHICS
NETVISION 2200I, NETVISION 2500I
|
Card Type |
Video card |
|
Video Chipset |
Artist Graphics ARTIST 3GA |
|
Maximum Video Memory |
4MB VRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1280 (NetVision 2200i) 1856 x 1484 or 2048 x 1152 (NetVision 2500i) |
|

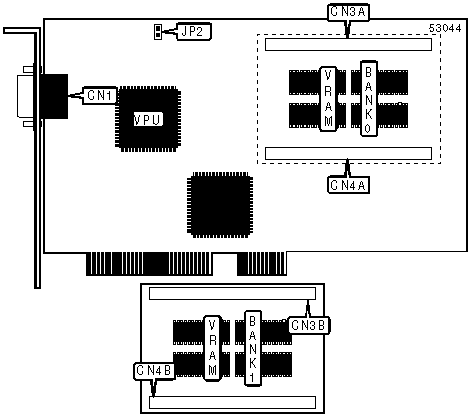

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video out |
CN1 |
Header to memory daughterboard |
CN4A |
|
Header to memory daughterboard |
CN3A |
Header to main board CN4A (on back of board) |
CN4B |
|
Header to main board CN3A (on back of board) |
CN3B | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
VGA BIOS enabled |
JP2 |
Open |
|
VGA BIOS disabled |
JP2 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
Installed |
Not installed |
|
4MB |
Installed |
Installed |
