YUAN TECHNOLOGY, INC.
MPEG DECODER (MPG-256L/MPG-256V-N/MPG-100S)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
1024 x 768, |
|
Maximum Video Memory |
4MB DRAM (location unidentified) |
|
Data Bus |
16-bit ISA |
|
Video Types Supported |
XVGA |
|

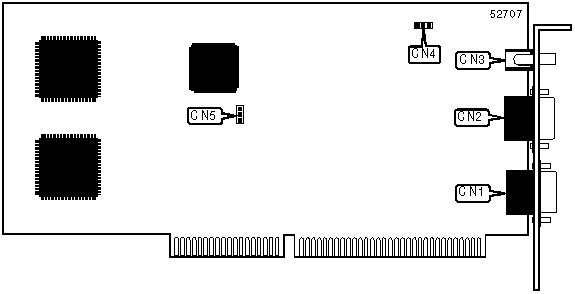

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15 pin analog video in |
CN1 |
Audio out |
Cn4 |
|
15 pin analog video out |
CN2 |
Audio in |
CN5 |
|
Audio line out |
CN3 | ||
