Category	Video/Sound
Video Types Supported	XVGA
Video Processor	S3 - 868
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI & proprietary Media Bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

CONNECTIONS

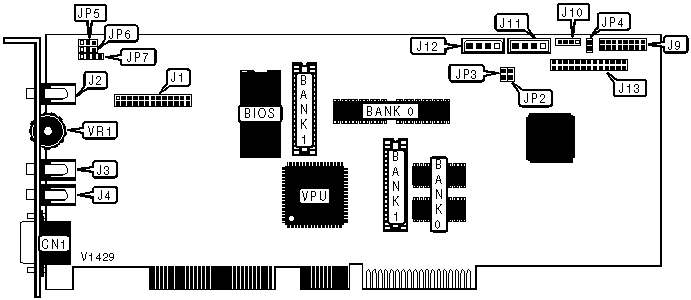

Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Mitsumi CD - audio in	J11
VGA feature connector	J1	Panasonic CD - audio in	J12
Line out	J2	Wavetable interface	J13
Mic in	J3	PC speaker in	JP4
Line in	J4	4-pin audio connector	JP7
16-pin game port initerface	J9	Volume	VR1
Sony CD - audio in	J10

AUDIO BASE ADDRESS SELECTION
Address	JP2	JP3
220h - 233h	Closed	Closed
240h - 253h	Closed	Open
260h - 273h	Open	Closed
280h - 293h	Open	Open

AUDIO OUTPUT SELECTION
Setting	JP5	JP6
Line out	Pins 1 & 2 closed	Pins 1 & 2 closed
Speaker out	Pins 2 & 3 closed	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 8	NONE
2MB	(4) 256K x 8	(2) 256K x 16
