Category

Video

Video Types Supported

XVGA

Video Processor

Cirrus Logic, Inc.

Highest Resolution Supported

1280 x 1024

Data Bus Type

VESA local bus

Memory Type

DRAM

Maximum Onboard Memory

2MB

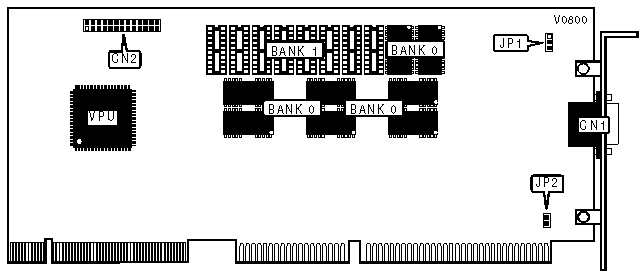

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature connector

CN2

IRQ9

Setting

JP1

»

Enabled

Closed

Disabled

Open

FACTORY CONFIGURED

Jumper

Setting

JP2

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

»

1MB

(8) 256K x 4

None

2MB

(8) 256K x 4

(8) 256K x 4
