Category	Video Capture
Video Types Supported	N/A
Video Processor	Unidentified
Highest Resolution Supported	N/A
Data Bus Type	16-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	Unidentified

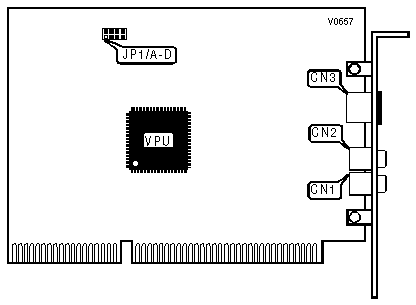

CONNECTIONS
Purpose	Location	Purpose	Location
RCA connector	CN1	S-VHS video connector	CN3
RCA connector	CN2

ADDRESS SETTINGS
Setting	JP1/A	JP1/B	JP1/C	JP1/D
260h	Closed	Closed	Open	Open
280h	Open	Open	Closed	Open
2A0h	Closed	Open	Closed	Open
340h	Open	Closed	Open	Closed
