AST RESEARCH, INC.

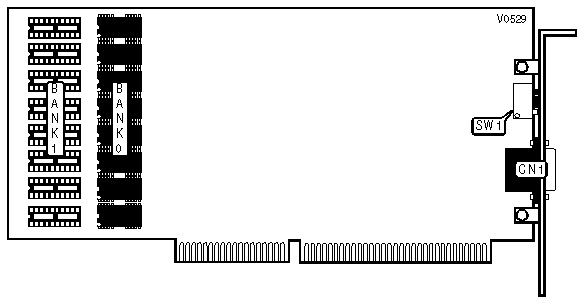

AST VGA PLUS (202262-001, 002, 003)
|
Category |
Video |
|
Video Types Supported |
VGA |
|
Video Processor |
Western Digital |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
MONITOR TYPE | ||
|
Type |
SW1/1 | |
| » |
Analog or VGA |
Off |
|
Multi-frequency |
On | |
|
DATA BUS TRANSFER RATE | ||
|
Size |
SW1/2 | |
| » |
16-bit |
On |
|
8-bit |
Off | |
|
ZERO WAIT STATE | ||
|
Setting |
SW1/3 | |
| » |
Disabled |
On |
|
Enabled |
Off | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(8) 64K x 4 |
NONE |
|
512KB |
(8) 64K x 4 |
(8) 64K x 4 |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
SW1/4 |
Off |
