Category	Video
Video Types Supported	XVGA
Video Processor	S3
Highest Resolution Supported	1280 X 1024
Data Bus Type	16-bit EISA
Memory Type	VRAM
Maximum Onboard Memory	1MB

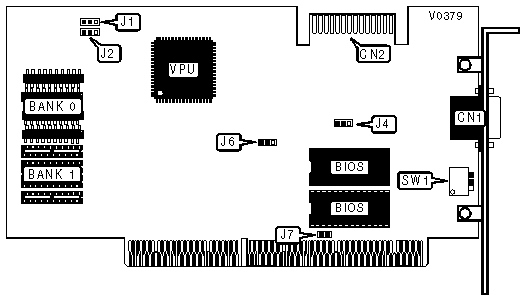

REFRESH RATE CONFIGURATION
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature Connector	CN2

640 X 480 REFRESH RATES
Refresh	SW1/switch 1	SW1/switch 2	SW1/switch 3
60Hz	Off	Off	Off
70Hz	On	Off	Off

800 X 600 REFRESH RATES
Refresh	SW1/switch 1	SW1/switch 2	SW1/switch 3
60Hz	Off	On	Off
70Hz	On	On	Off
56Hz	Off	Off	On

1024 X 768 REFRESH RATES
Refresh	SW1/switch 1	SW1/switch 2	SW1/switch 3
43Hz	On	Off	On
60Hz	Off	On	On
70Hz	On	On	On

FACTORY CONFIGURED SETTINGS
Jumper	Setting
J2	Pins 1 & 2 closed
J4	Pins 1 & 2 closed
J6	Pins 1 & 2 closed
J7	Open

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1	J1
512KB	(4) 44256 ZIP	None	Pins 2 & 3 closed
1024KB	(4) 44256 ZIP	(4) 44256 ZIP	Pins 1 & 2 closed
