Category	Video
Video Types Supported	XVGA
Video Processor	S3 Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit PCI-bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

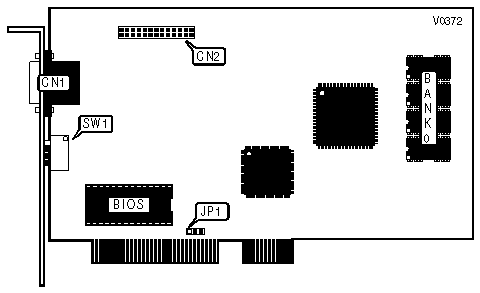

CONNECTIONS
Purpose	Location	Purpose	Location
15 pin analog video port	CN1	VESA Feature connector	CN2

DISPLAY CONFIGURATION
Mode/Sync	Horizontal Frequency	Vertical Frequency	SW1/2	SW1/3
1280 x 1024 x 8	48.1KHz	44.5Hz	On	On
1280 x 1024 x 8	48.1KHz	44.5Hz	On	Off
1280 x 1024 x 8	64.0KHz	60.0Hz	Off	On
1280 x 1024 x 8	64.0KHz	60.0Hz	Off	Off
1280 x 1024 x 4	48.1KHz	44.5Hz	On	On
1280 x 1024 x 4	48.1KHz	44.5Hz	On	Off
1280 x 1024 x 4	64.0KHz	60.0Hz	Off	On
1280 x 1024 x 4	64.0KHz	60.0Hz	Off	Off
1152 x 864 x 8	53.5KHz	56.0Hz	On	On
1152 x 864 x 8	53.5KHz	56.0Hz	On	Off
1152 x 864 x 8	53.5KHz	56.0Hz	Off	On
1152 x 864 x 8	53.5KHz	56.0Hz	Off	Off

DISPLAY CONFIGURATION (CONTINUED)
Mode/Sync	Horizontal Frequency	Vertical Frequency	SW1/2	SW1/3
1024 x 768 x 16	35.5KHz	43.5Hz	On	On
1024 x 768 x 16	35.5KHz	43.5Hz	On	Off
1024 x 768 x 16	35.5KHz	43.5Hz	Off	On
1024 x 768 x 16	35.5KHz	43.5Hz	Off	Off
1024 x 768 x 8	35.5KHz	43.5Hz	On	On
1024 x 768 x 8	35.5KHz	43.5Hz	On	Off
1024 x 768 x 8	48.5KHz	60.0Hz	Off	On
1024 x 768 x 8	56.5KHz	70.0Hz	Off	Off
1024 x 768 x 4	35.5KHz	43.5Hz	On	On
1024 x 768 x 4	35.5KHz	43.5Hz	On	Off
1024 x 768 x 4	48.5KHz	60.0Hz	Off	On
1024 x 768 x 4	56.5KHz	70.0Hz	Off	Off
800 x 600 x 16	37.9KHz	60.0Hz	On	On
800 x 600 x 16	37.9KHz	60.0Hz	On	Off
800 x 600 x 16	37.9KHz	60.0Hz	Off	On
800 x 600 x 16	37.9KHz	60.0Hz	Off	Off
800 x 600 x 8	35.5KHz	56.0Hz	On	On
800 x 600 x 8	35.5KHz	56.0Hz	On	Off
800 x 600 x 8	37.9KHz	60.0Hz	Off	On
800 x 600 x 8	48.1KHz	72.0Hz	Off	Off
800 x 600 x 4	35.5KHz	56.0Hz	On	On
800 x 600 x 4	35.5KHz	56.0Hz	On	Off
800 x 600 x 4	37.9KHz	60.0Hz	Off	On
800 x 600 x 4	48.1KHz	72.0Hz	Off	Off
640 x 480 x 24	38.0KHz	73.0Hz	On	On
640 x 480 x 24	38.0KHz	73.0Hz	On	Off
640 x 480 x 24	38.0KHz	73.0Hz	Off	On
640 x 480 x 24	38.0KHz	73.0Hz	Off	Off
640 x 480 x 16	31.5KHz	60.0Hz	On	On
640 x 480 x 16	31.5KHz	60.0Hz	On	Off
640 x 480 x 16	38.0KHz	73.0Hz	Off	On
640 x 480 x 16	38.0KHz	73.0Hz	Off	Off
640 x 480 x 15	31.5KHz	60.0Hz	On	On
640 x 480 x 15	31.5KHz	60.0Hz	On	Off
640 x 480 x 15	38.0KHz	73.0Hz	Off	On
640 x 480 x 15	38.0KHz	73.0Hz	Off	Off
640 x 480 x 8	31.5KHz	60.0Hz	On	On
640 x 480 x 8	31.5KHz	60.0Hz	On	Off
640 x 480 x 8	31.5KHz	60.0Hz	Off	On
640 x 480 x 8	38.0KHz	73.0Hz	Off	Off

VIDEO INTERUPT SELECT
IRQ		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/1	N/A
SW1/4	N/A
Note:These switches are reserved for future use.
