Category	Video
Video Types Supported	XVGA
Video Processor	Artist GPX
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit VESA Local Bus
Memory Type	VRAM/DRAM
Maximum Onboard Memory	2048KB VRAM, 8MB DRAM

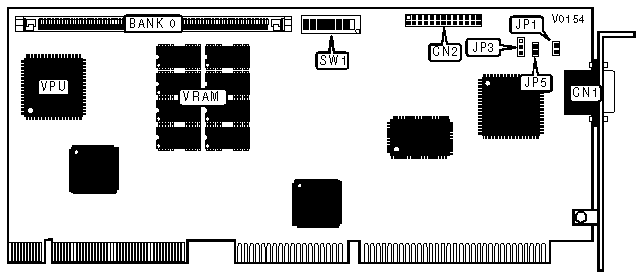

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

VIDEO CONFIGURATION
Video		JP1	JP5
»	Enabled	Open	Closed
	Disabled	Closed	Open

VIDEO SYNC SELECTION
Sync		JP3
»	Separate Signals	Pins 1 & 2 closed
	Composite Signals	Pins 2 & 3 closed

I/O BASE ADDRESS
Address		SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6	SW1/7	SW1/8
»	3E0h	On	Off	Off	Off	Off	Off	Off	Off
	3C0h	On	On	Off	Off	Off	Off	Off	Off
	3F0h	Off	Off	Off	Off	Off	Off	Off	Off
	2C0h	On	On	Off	Off	On	Off	Off	Off
	2D0h	Off	On	Off	Off	On	Off	Off	Off
	2E0h	On	Off	Off	Off	On	Off	Off	Off

DRAM/VRAM CONFIGURATION
Size	Bank 0
1MB	256K x 36
2MB	512KB x 36
4MB	1M x 36
8MB	2M x 36
