UNIDENTIFIED
THE COMPLETE FAX/9600
|
Modem Type |
Data/Fax/Scanner |
|
Maximum Data Rate |
2400 bps |
|
Maximum Fax Rate |
9600 bps |
|
Data Bus |
8-bit ISA |
|
Fax Class |
Unidentified |
|
Data Modulation Protocol |
Unidentified |
|
Fax Modulation Protocol |
Unidentified |
|
Error Correction/Compression |
Unidentified |
|

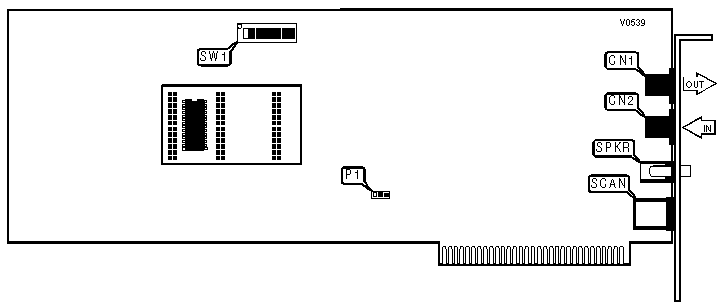

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Line out |
CN1 |
Scanner port |
SCAN |
|
Line in |
CN2 |
Speaker jack |
SPKR |
|
I/O ADDRESS | |||
|
I/O Address |
SW1/1 |
SW1/2 |
SW1/3 |
| » 2E0-2E7h |
On |
Off |
Off |
|
220-227h |
On |
On |
On |
|
260-267h |
On |
On |
Off |
|
2A0-2A7h |
On |
Off |
On |
|
320-327h |
Off |
On |
On |
|
360-367h |
Off |
On |
Off |
|
3A0-3A7h |
Off |
Off |
On |
|
3E0-3E7h |
Off |
Off |
Off |
Continued on next page . . .
UNIDENTIFIED
THE COMPLETE FAX/9600
.. . . continued from previous page
|
MODEM COM PORT SELECT | |
|
COM |
SW1/4 |
|
COM1 |
Off |
|
COM2 |
On |
|
Note: Modem is an optional feature. | |
|
Note: If Modem is NOT installed (P1 Pins 2 & 3 closed) switch SW1/4 is NOT used. | |
|
COM PORT & IRQ SETTINGS | |||||||
|
COM |
IRQ |
MODEM |
SCANNER |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
N/A |
N/A |
Not present |
Not present |
Off |
Off |
Off |
Off |
|
COM1 |
IRQ4 |
N/A |
Present/Not |
Off |
Off |
On |
Off |
|
COM2 |
IRQ3 |
N/A |
Present/Not |
Off |
On |
Off |
Off |
|
N/A |
IRQ2 |
Not present |
Present |
On |
Off |
Off |
Off |
|
N/A |
IRQ3 |
Not present |
Present |
Off |
On |
Off |
Off |
|
N/A |
IRQ4 |
Not present |
Present |
Off |
Off |
On |
Off |
|
N/A |
IRQ5 |
Not present |
Present |
Off |
Off |
Off |
On |
|
MODEM | |
|
Setting |
P1 |
|
Modem Installed |
Pins 1 & 2 Closed |
|
Modem Not Installed |
Pins 2 & 3 Closed |
