Card Type	Fax, Modem (asynchronous)
Chip Set	Unidentified
Maximum Data Rate	2400bps
Maximum Fax Rate	9600bps
Data Bus	8-bit ISA
Fax Class	Class I
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23
Fax Modulation Protocol	ITU-T V.21CH2, V.27ter, V.29

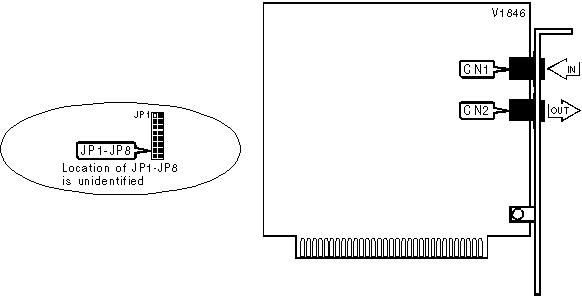

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Line out		CN2

SERIAL PORT ADDRESS
Setting	JP1	JP2	JP3	JP4
í COM1 (3F8h)	Closed	Closed	Open	Open
COM2 (2F8h)	Closed	Open	Open	Closed
COM3 (3E8h)	Open	Closed	Closed	Open
COM4 (2E8h)	Open	Open	Closed	Closed

INTERRUPT
Setting	JP5	JP6	JP7	JP8
2	Closed	Open	Open	Open
3	Open	Closed	Open	Open
í 4	Open	Open	Closed	Open
5	Open	Open	Open	Closed

MISCELLANEOUS TECHNICAL NOTES

Note: On U.S. models; V.23, MNP5, V.42, V.42bis is not applicable.
