Card Type	Modem (asynchronous)
Chipset	Unidentified
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Modulation	Bell 103A, 212A ITU-T V.21, V.22, V.22bis, V.32, V.32bis
Fax Modulation	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis
Fax Class	Class I & II
Data Bus	Serial

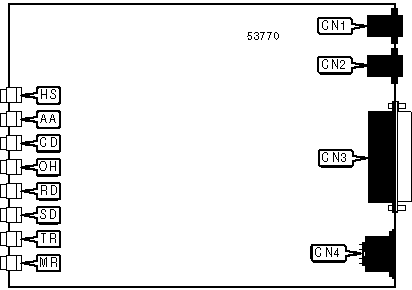

CONNECTIONS
Function	Label	Function	Label
Telephone line in	CN1	Serial port	CN3
Telephone line out	CN2	DC power in	CN4

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
HS	Green	On	Modem is operating at 4800bps or faster
HS	Green	Off	Modem is operating at slower than 4800bps
AA	Green	On	Auto-answer enabled
AA	Green	Off	Auto-answer disabled
AA	Green	Blinking	Phone is ringing
CD	Green	On	Carrier signal detected
CD	Green	Off	Carrier signal not detected
OH	Green	On	Modem is off-hook
OH	Green	Off	Modem is on-hook
RD	Green	Blinking	Modem is receiving data
RD	Green	Off	Modem is not receiving data
SD	Green	Blinking	Modem is transmitting data
SD	Green	Off	Modem is not transmitting data
TR	Green	On	DTR signal is high
TR	Green	Off	DTR signal is low
MR	Green	On	Power is on
MR	Green	Off	Power is off

SUPPORTED STANDARD COMMANDS

Basic AT Commands

+++, ‘comma’, A/

A, C, D, E, F, H, L, M, N, P, Q, T, V, W, X, Y, Z

&C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z

Extended AT Commands

\A, \B, \C, \G, \J, \N, \O, \Q, \T, \U, \V, \X, \Y, \Z

%A, %C, %E, %G

Special AT Commands

-C, -J, "H, "O

S-Registers

S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, S14, S16, S18, S21, S22, S23, S25, S26

S27, S30, S37, S95, S108, S109, S110

Note: See MHI help file for complete information.
