DIALOGIC CORPORATION
GAMMAFAX XP
|
Card Type |
Fax |
|
Processor |
80C188 |
|
Processor Speed |
10MHz |
|
Maximum Onboard Memory |
Unidentified |
|
Chipset |
Unidentified |
|
Maximum Fax Rate |
9600bps |
|
Fax Modulation |
ITU-T V.21CH2, V.27ter, V.29 |
|
Fax Class |
N/A |
|
Data Bus |
8-bit ISA |
|
Card Size |
Full height, full length |
|

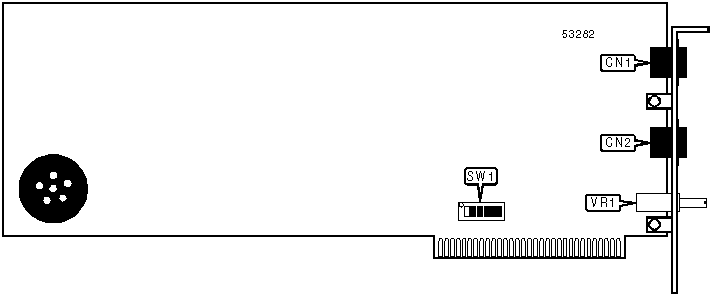

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Telephone line out |
CN1 |
Volume control |
VR1 |
|
Telephone line in |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
SW1/4 |
On |
| » |
Factory configured - do not alter |
SW1/5 |
On |
| » |
Factory configured - do not alter |
SW1/6 |
Off |
|
BASE I/O ADDRESS SELECTION | ||||
|
Setting |
Channel |
SW1/1 |
SW1/2 |
SW1/3 |
|
250h |
3 |
On |
On |
Off |
|
350h |
0 |
Off |
Off |
Off |
|
360h |
1 |
On |
Off |
Off |
|
370h |
2 |
Off |
On |
Off |
