US ROBOTICS WINMODEM 14.4

3COM CORPORATION

Card Type

Fax, Modem (asynchronous)

Chip Set

U.S. Robotics

Maximum Data Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

8-bit ISA

Fax Class

Class I

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.23, V.25, V.32, V.32bis

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42, V.42bis

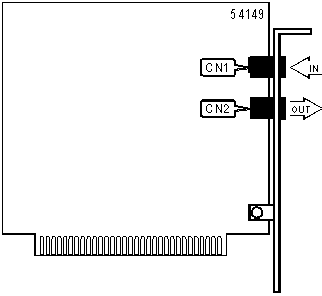

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

Line out

CN2

Proprietary AT Command Set

See document V1935 for a full command summary.

Card Type	Fax, Modem (asynchronous)
Chip Set	U.S. Robotics
Maximum Data Rate	14.4Kbps
Maximum Fax Rate	14.4Kbps
Data Bus	8-bit ISA
Fax Class	Class I
Data Modulation Protocol	Bell 103/212A ITU-T V.21, V.22, V.22bis, V.23, V.25, V.32, V.32bis
Fax Modulation Protocol	ITU-T V.17, V.21CH2, V.27ter, V.29
Error Correction/Compression	MNP5, V.42, V.42bis

CONNECTIONS
Function	Label		Function		Label
Line in		CN1		Line out		CN2
