SONY CORPORATION
CDU-531
|
Device Type |
Internal CD-ROM |
|
Interface |
Sony |
|
Spin Rate |
1x |
|
Formats Supported |
Audio CD’s, Audio combined CD-ROM disks, CD-ROM (Mode 1 & 2), Red & Yellow Book Audio |
|

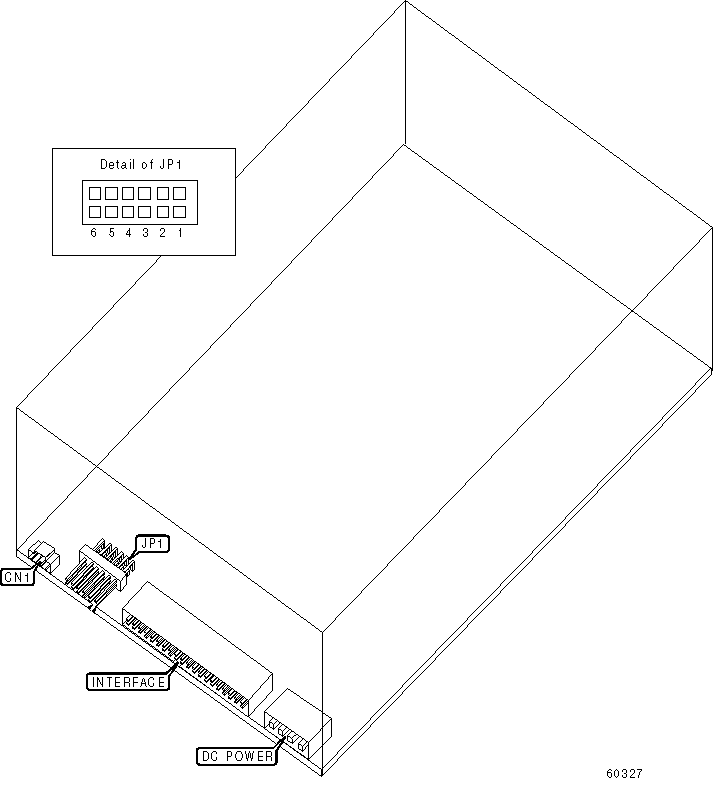

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Termination enabled |
JP1/1 |
Closed |
|
Termination disabled |
JP1/1 |
Open | |
|
DRQ select |
JP1/2 |
Closed | |
|
Wait select |
JP1/2 |
Open | |
|
Note: Only change the setting of JP1/2 (DRQ to Wait) if instructed in your manual. | |||
|
DRIVE SELECT ID | |||||
|
Drive ID |
JP1/3 |
JP1/4 |
JP1/5 |
JP1/6 | |
| » |
0 |
Open |
Open |
Open |
Closed |
|
1 |
Open |
Open |
Closed |
Open | |
|
2 |
Open |
Closed |
Open |
Open | |
|
3 |
Closed |
Open |
Open |
Open | |
