Device Type	CD-ROM
Interface	ATAPI
Spin Rate	8x
Formats Supported	CD-XA, CD-I, CD-ROM (Mode 1 & Mode 2), CD-I Ready, CD-Bridge, Photo CD

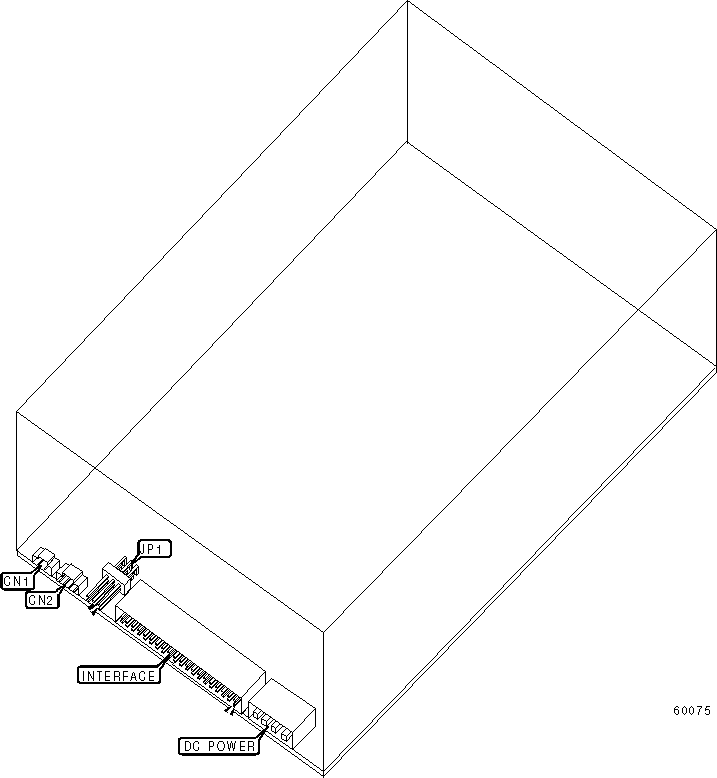

View	Top

CONNECTIONS
Function	Label
Audio line out	CN2

USER CONFIGURABLE SETTINGS
Setting	Label	Position
Factory configured - do not alter	CN1	N/A

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Single drive only	Closed	Open	Open
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Cable select	Open	Open	Closed
