TEAC CORPORATION
CD-55A SUPER QUAD 4X CD-ROM DRIVE
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
4x |
|
Formats Supported |
CD-ROM (mode 1), CD-DA, (mode 2, form 1, form 2), Muti-session Photo-CD, XA, CDI |
|

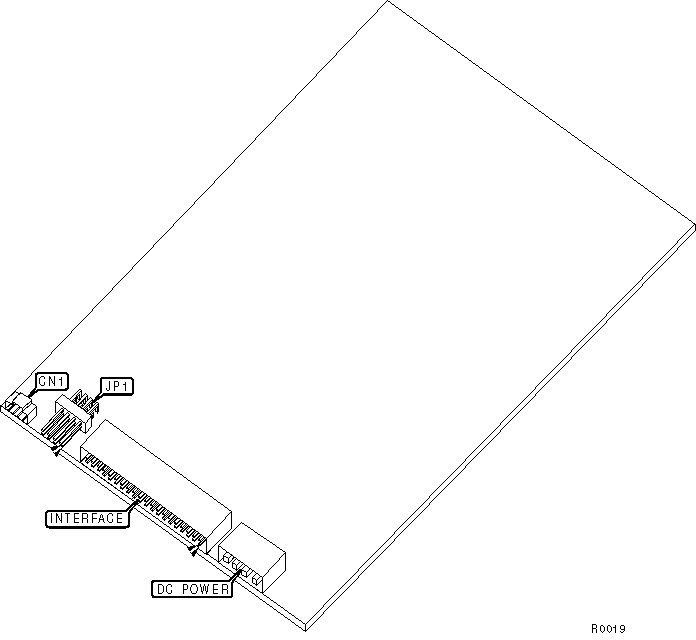

CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/1 |
JP1/2 |
JP1/3 |
JP1/4 |
|
0 |
Open |
Open |
Open |
Closed |
|
1 |
Open |
Open |
Closed |
Open |
|
2 |
Open |
Closed |
Open |
Open |
|
3 |
Closed |
Open |
Open |
Closed |
