Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate (Read)	16x
Formats Supported Read	CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, CD-Plus

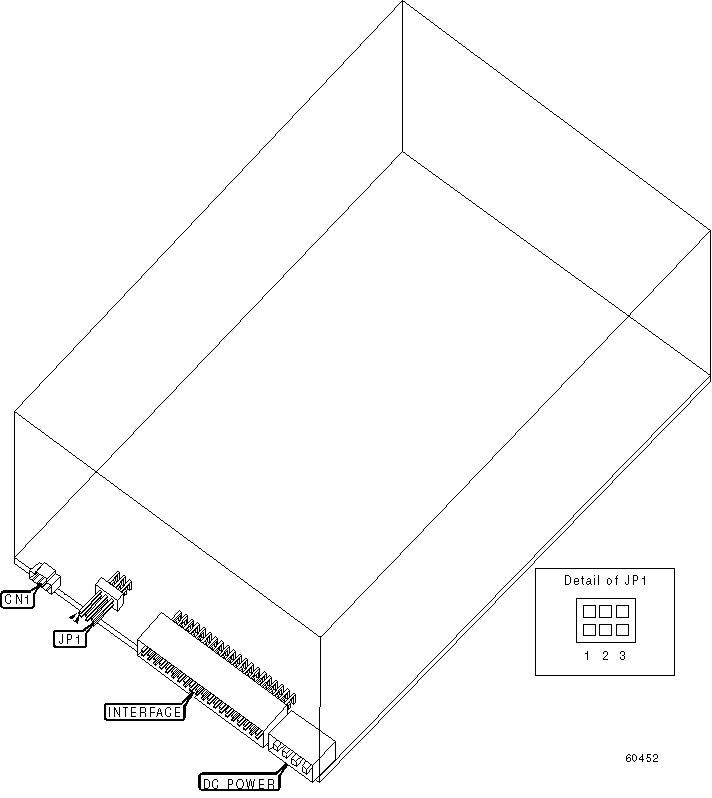

View	Top

CONNECTIONS
Function	Label
Digital audio line out	CN1

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Single drive only/Master in two drive system	Open	Open	Closed
Slave in two drive system	Open	Closed	Open
Master/slave determined by cable select	Closed	Open	Open
