Device Type

CD-ROM

Interface

ATAPI

Spin Rate

Unidentified

Formats Supported Read

CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Red & Yellow Book, CD-Extra, Karaoke CD

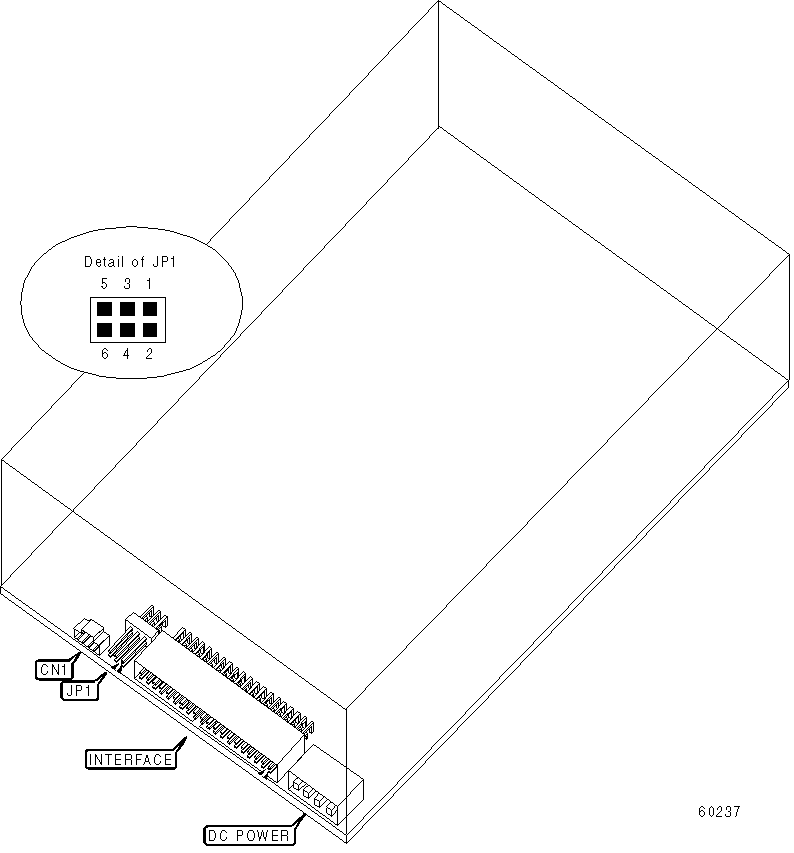

View

Top

CONNECTIONS

Function

Label

Audio out connector

CN1

ATAPI MASTER/SLAVE

Setting

JP1

Master

Pins 1 & 2 closed

Slave

Pins 3 & 4 closed

Cable select

Pins 5 & 6 closed
