Device Type	CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	12x
Formats Supported Read	CD-DA, CD-ROM (Mode 1 & Mode 2), CD-ROM XA, Photo-CD, CD-I, Video-CD, CD-PLUS, Red & Yellow Book

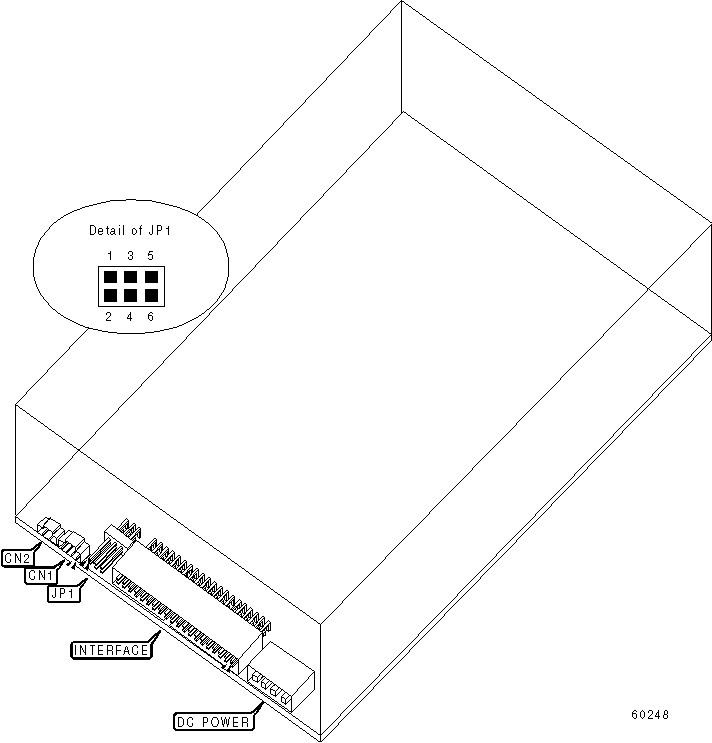

View	Top

CONNECTIONS
Function	Label	Function	Label
Audio out connector	CN1	Digital audio out connector	CN2

ATAPI MASTER/SLAVE
Setting		JP1
»	Drive is master	Pins 5 & 6 closed
	Drive is slave	Pins 3 & 4 closed
	Master/slave determined by cable select	Pins 1 & 2 closed
