Device Type	CD-ROM
Interface	ATAPI
Spin Rate	4x
Formats Supported Read	CD-ROM (Mode 1 & 2 (Form 1 & 2)), CD-XA, CD-DA (Red Book), Photo-CD
Formats Supported Write	N/A

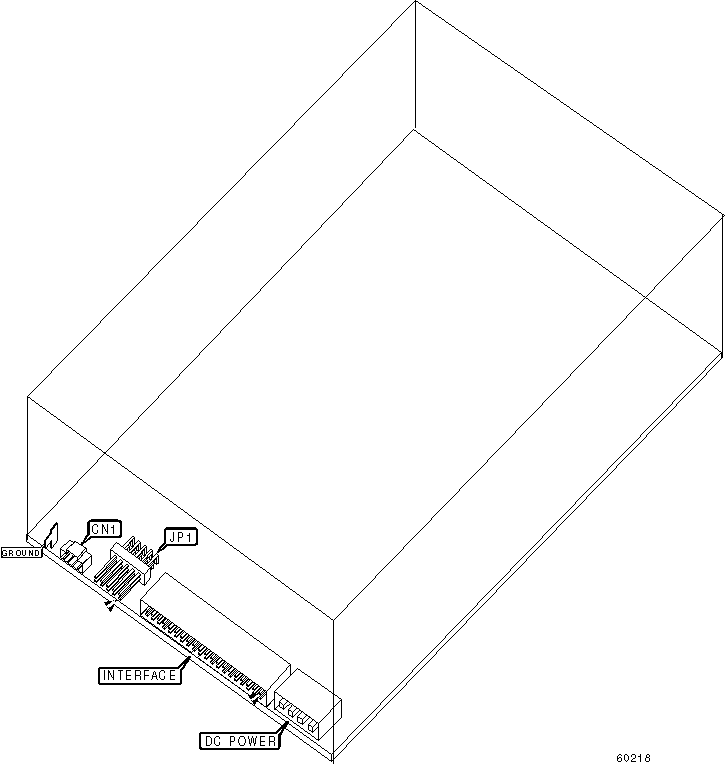

View	Top

CONNECTIONS
Function	Label
Audio out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1/jumper 4	Open
»	Factory configured - do not alter	JP1/jumper 5	Open

ATAPI MASTER/SLAVE SELECTION
Setting	JP1/jumper 1	JP1/jumper 2	JP1/jumper 3
Single drive only	Closed	Open	Open
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/Slave determined by Cable Select (CSEL)	Open	Open	Closed
