Device Type	Internal DVD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	Unidentified
Formats Supported Read	CD-XA, CD-I, Photo-CD, Video CD, Red & Yellow Book, CD-Plus, DVD-ROM Book, DVD-Video Book, DA-I Bridge, CD-G, Multi-session

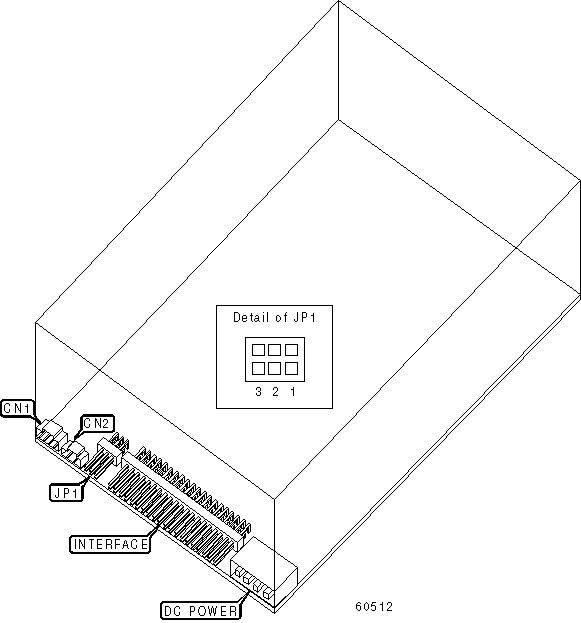

View	Top

CONNECTIONS
Function	Label	Function	Label
Digital audio line out	CN1	Audio line out	CN2

IDE MASTER/SLAVE SELECTION
Setting	JP1/1	JP1/2	JP1/3
Master in two drive system	Open	Open	Closed
Slave in two drive system	Open	Closed	Open
Master/slave determined by cable select	Closed	Open	Open
