Device Type	CD-ROM
Interface	ATAPI
Spin Rate	12x
Size	5.25 in. half height
Formats Supported	Photo-CD (other formats may be supported)

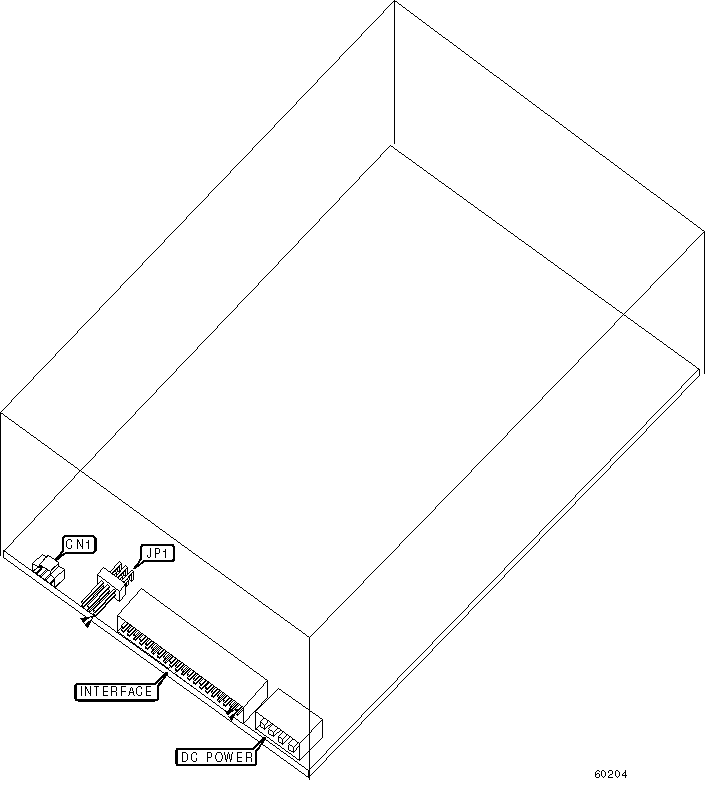

View	Top

CONNECTIONS
Function	Label
Audio out	CN1

ATAPI MASTER/SLAVE SELECTION
Setting	JP1/jumper 1	JP1/jumper 2	JP1/jumper 3
Single drive only	Closed	Open	Open
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/Slave determined by Cable Select (CSEL)	Open	Open	Closed
