Device Type	Internal Tape Drive
Interface	Floppy
Format	TRAVAN TR-1
Sustained Transfer Rate	500KBPS, 1MBPS
Size	3.5 in. quarter height

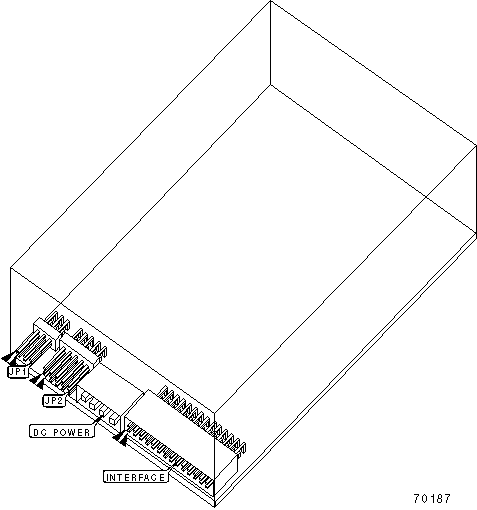

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity with Compression
TRAVAN TR-1	800MB
QW-5122 F	420MB
DC-2120 XL	340MB

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Tape is busy
LED1	Unidentified	Off	Tape is not in use
