IBM CORPORATION
OPTIONS 12/24 GB, DDS/3 4mm. INTERNAL TAPE
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 Fast |
|
Format |
4mm |
|
Sustained Transfer Rate |
1.1 MBPS, 2.2 MBPS |
|
Size |
5.25 in. third height |
|

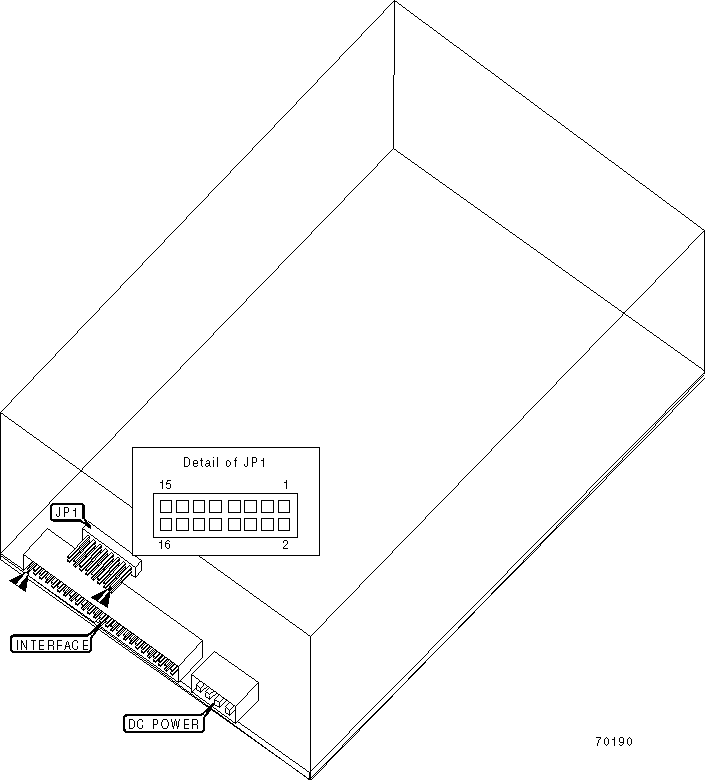

View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured – do not alter |
JP1/Pins 7 & 8 |
Unidentified |
| » |
Factory configured – do not alter |
JP1/Pins 9 & 10 |
Unidentified |
| » |
Factory configured – do not alter |
JP1/Pins 11 & 12 |
Unidentified |
| » |
Factory configured – do not alter |
JP1/Pins 13 & 14 |
Unidentified |
| » |
Termination enabled |
JP1/ Pins 15 & 16 |
Closed |
|
Termination disabled |
JP1/ Pins 15 & 16 |
Open | |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/Pins 1 & 2 |
JP1/Pins 3 & 4 |
JP1/Pins 5 & 6 | |
|
0 |
Off |
Off |
Off | |
| » |
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off | |
|
3 |
On |
On |
Off | |
|
4 |
Off |
Off |
On | |
|
5 |
On |
Off |
On | |
|
6 |
Off |
On |
On | |
|
7 |
On |
On |
On | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
IBM 59H3456 |
Unidentified |
Unidentified |
|
DDS (60m.) |
1.3GB |
2.6GB |
|
DDS (90m.) |
2GB |
4GB |
|
DDS-2 (120m.) |
4GB |
8GB |
|
DDS-3 (125m.) |
12GB |
24GB |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED2 |
Amber |
On |
The drive is reading/writing to cartridge |
|
LED2 |
Amber |
Off |
The drive is not in use |
|
LED2 |
Amber |
Blinking fast |
A hardware fault has occurred |
|
LED1 |
Green |
On |
An error-free cartridge is inserted into drive |
|
LED1 |
Green |
Off |
No cartridge is inserted in drive |
|
LED1 |
Green |
Blinking slow |
A cartridge is inserted that generates errors |
|
LED1 |
Green |
Blinking fast |
Drive could not write to the cartridge correctly |
