Device Type	Internal Tape Drive
Interface	SCSI-2
Format	DDS-DC, DDS-2
Sustained Transfer Rate	510 KBPS 1.0 MBPS (with compression)
Size	3.5 in. half height

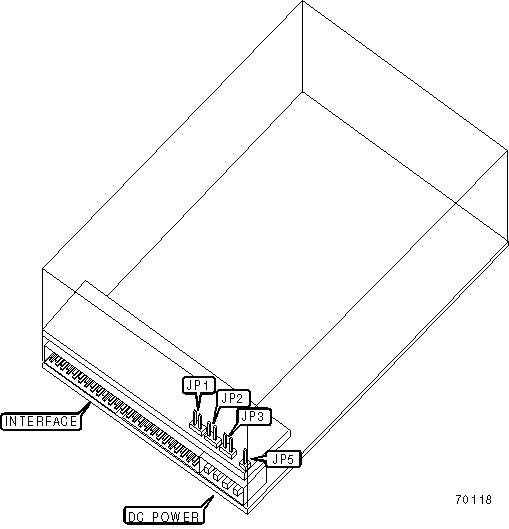

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP5	Unidentified
Note: Jumper JP5 causes data compression on writes to be disabled at power on if connected to ground. A host may override this unless "switch 2" on underside of drive is set to OFF. Exact location and orientation of "switch 2" is unidentified.

DRIVE SELECT ID
Drive ID	JP1	JP2	JP3
0	Open	Open	Open
1	Open	Open	Closed
2	Open	Closed	Open
3	Open	Closed	Closed
4	Closed	Open	Open
5	Closed	Open	Closed
6	Closed	Closed	Open
7	Closed	Closed	Closed

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity Without Compression	Capacity With Compression
60 meter DDS cartridge	1.3 GB	2.6 GB
90 meter DDS cartridge	2.0 GB	4.0 GB
120 meter DDS-2 cartridge	4.0 GB	8.0 GB

DIAGNOSTIC LED(S)
LED1 (Green)	LED2 (Yellow)	Condition
Off	Off	No power/drive Idle, no cartridge
On	Off	Cartridge loaded, No Activity
Flash	Off	Cartridge loaded, Activity
Pulse	Off	Loading/Unloading/Ejecting/Power-On
Off	On	Self Test Failure
Off	Pulse	No Cartridge, Caution (cleaning required)
On	Pulse	Cartridge loaded, Caution (cleaning required)
Flash	Pulse	Cartridge loaded, Drive Active, Caution (cleaning required)
Pulse	Pulse	Cartridge loading/unloading, Caution (cleaning required)
