Device Type

Internal Tape Drive

Interface

SCSI-2 Fast

Format

QUARTER INCH, QIC

Sustained Transfer Rate

380 KBPS (native), 760 KBPS (compressed)

Size

5.25 in. half height

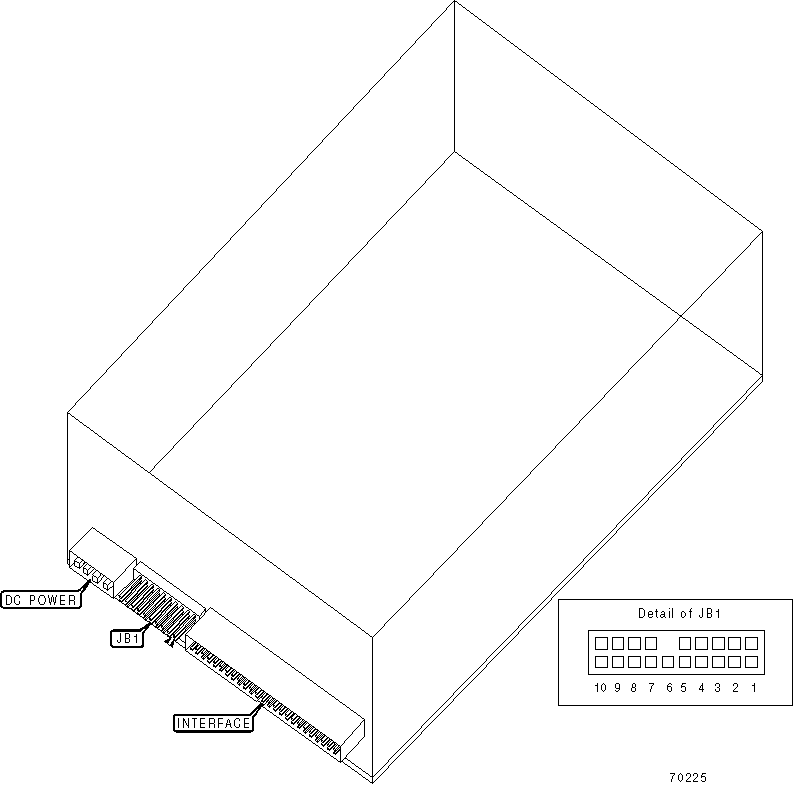

View

Top

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Parity check enabled

JB1/5

Closed

Parity check disabled

JB1/5

Open

»

Factory configured - do not alter

JB1/6

Unidentified

»

Factory configured - do not alter

JB1/7

Unidentified

»

Factory configured - do not alter

JB1/8

Unidentified

Test in

JB1/9

Unidentified

Test out

JB1/10

Unidentified

DRIVE SELECT ID

Drive ID

JB1/2

JB1/3

JB1/4

0

Open

Open

Open

1

Closed

Open

Open

2

Open

Closed

Open

3

Closed

Closed

Open

4

Open

Open

Closed

5

Closed

Open

Closed

6

Open

Closed

Closed

7

Closed

Closed

Closed

TERMINATION POWER SELECTION

Setting

JP1/1

TERMPWR supplied by drive

Closed

TERMPWR supplied by SCSI interface to drive

Open

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

QIC-150

150MB

250MB

QIC-525

320MB

525MB

QIC-1000

1GB

1.2GB

QIC-2GB-DC

2GB

2.5GB

QIC-4GB

4GB

8GB

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

N/A

Off

Cartridge is not loaded

LED1

Green

On

Cartridge is loaded

LED1

Green

Blinking

Drive is busy

LED1

Amber

On

A non-fatal media or hardware error has occurred

LED1

Amber

Blinking

Cleaning cartridge has been expended

LED1

Red

On

A fatal media or hardware has occurred

LED1

Red

Blinking

Drive operating in self-test mode
