Device Type

Internal Tape Drive

Interface

SCSI-2 Fast

Format

DAT, DDS

Sustained Transfer Rate

Unidentified

Size

5.25 in. half height

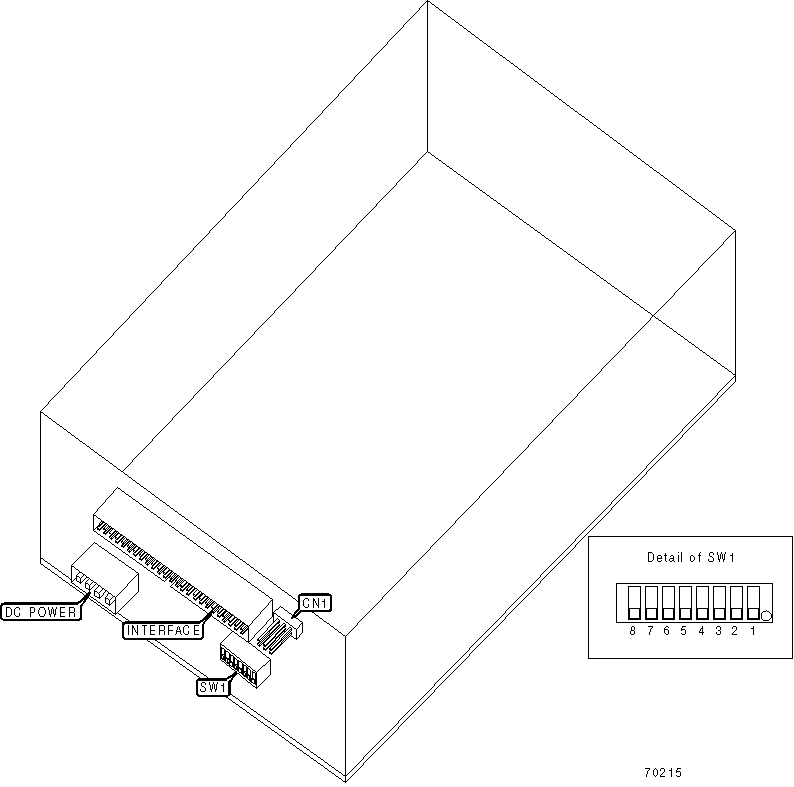

View

Top

CONNECTIONS

Function

Label

6-pin connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

» Media Recognition System enabled

SW1/4

On

Media Recognition System disabled

SW1/4

Off

» Parity enabled

SW1/5

On

Parity disabled

SW1/5

Off

» Compression disabled

SW1/6

Off

Compression enabled

SW1/6

On

» Factory configured - do not alter

SW1/7

Off

» Self Test disabled

SW1/8

Off

Self Test enabled

SW1/8

On

DRIVE SELECT ID

Drive ID

SW1/1

SW1/2

SW1/3

0

Off

Off

Off

1

On

Off

Off

2

Off

On

Off

3

On

On

Off

4

Off

Off

On

5

On

Off

On

6

Off

On

On

MANUFACTURERS RECOMMENDED MEDIA

Tape

Sony 60m (DG-60M)

Maxell 90m (HS-4/90s)

Fuji 90m (DG-90M)
