CONNER PERIPHERALS, INC.
CTT3200I-F, CTT3200R-F
|
Device Type |
Internal Tape Drive |
|
Interface |
Floppy |
|
Format |
QIC-Wide, Quarter Inch, Travan TR-3 |
|
Sustained Transfer Rate |
2MBPS |
|
Size |
3.5 in. third height 5.25 in. half height (CTT3200R-F with bezel) |
|

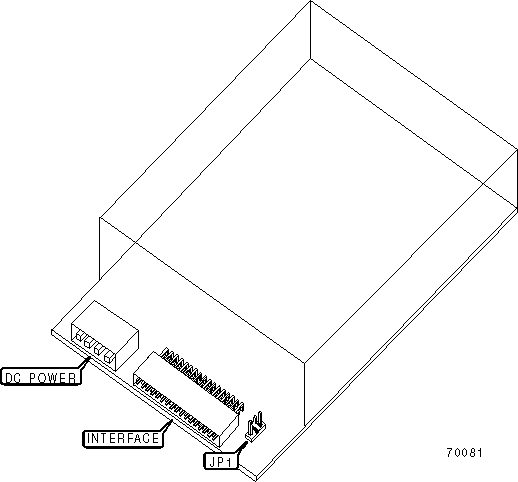

View |
Bottom |
|
DRIVE SELECT |
||
|
Setting |
JP1 |
|
|
» |
Factory drive select |
Open |
|
|
Drive one in two drive system |
Pins 1 & 2 closed |
|
|
Drive two in two drive system |
Pins 2 & 3 closed |
|
MANUFACTURERS RECOMMENDED MEDIA |
||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
Travan (750 ft.) Seagate 3200TT; 3M TR-3 |
1600 MB |
3200 MB |
|
Standard length (295 ft.) 3M DC3000 |
501 MB |
1.0 GB (DC3020 if QIC formatted) |
|
Long length (400 ft.) Seagate 1360QT; Sony QDC3020XLF; 3M DC3000XL |
679 MB |
1.36 GB (DC3020XL if QIC formatted) |
|
QIC Wide (400 ft.) Seagate 1700QT; Sony QW3020XLF |
849 MB |
1.7 GB |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Drive is active |
|
LED1 |
Green |
Off |
Drive is not active |
