32-BIT EISA ETHERNET CONTROLLER

NIC Type:

Ethernet

Transfer Rate:

10Mbps

Data Bus:

32-bit EISA

Topology:

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

RG58A/U 50ohm coaxial

Boot ROM

Available

CABLE TYPE

Type

J2

»
RG-58A/U 50ohm coaxial

See Configuration "A"

AUI transceiver via DB-15 port

See Configuration "B"

Note:To change the cable type, remove J2 and rotate it 180 degrees, then replace it.

NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-bit EISA
Topology:	Linear Bus
Wiring Type	AUI transceiver via DB-15 port RG58A/U 50ohm coaxial
Boot ROM	Available

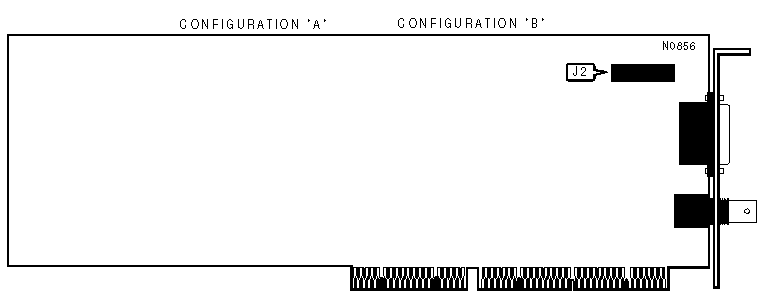

CABLE TYPE
Type		J2
»	RG-58A/U 50ohm coaxial	See Configuration "A"
	AUI transceiver via DB-15 port	See Configuration "B"

Note:To change the cable type, remove J2 and rotate it 180 degrees, then replace it.
