NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit MCA
Topology	Linear bus
Wiring Type	Unshielded twisted pair AUI transceiver via DB15
Boot ROM	Available (in firmware)

CABLE TYPE
Type	JP1
Unshielded twisted pair	Closed
AUI transceiver via DB-15 port	Open

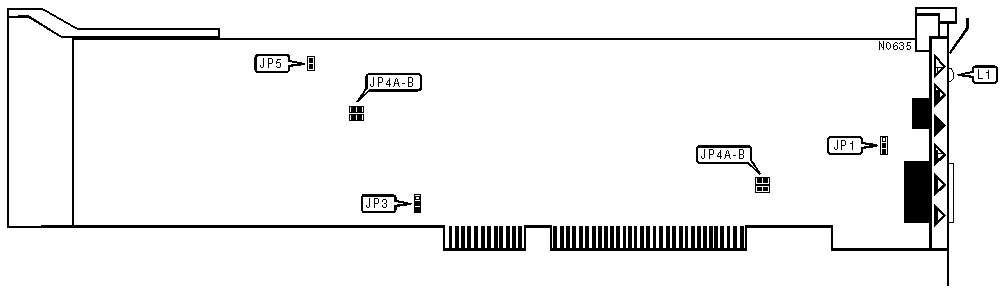

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP2A	Closed
JP2B	Closed
JP3	Pins 2 & 3 closed
JP4A	Closed
JP4B	Closed
JP5	Closed

DIAGNOSTIC LED(S)
LED	Status	Condition
L1	On	10BaseT link integrity exists
L1	Off	10BaseT link integrity broken
