STANDARD MICROSYSTEM CORPORATION
ARCNET-LC100
|
NIC Type |
Arcnet |
|
I/O Options |
Parallel port |
|
Data Bus |
Parallel |
|
Network Transfer Rate |
2.5Mbps |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-62A/U 93ohm coaxial |
|
Boot ROM |
Not available |
|

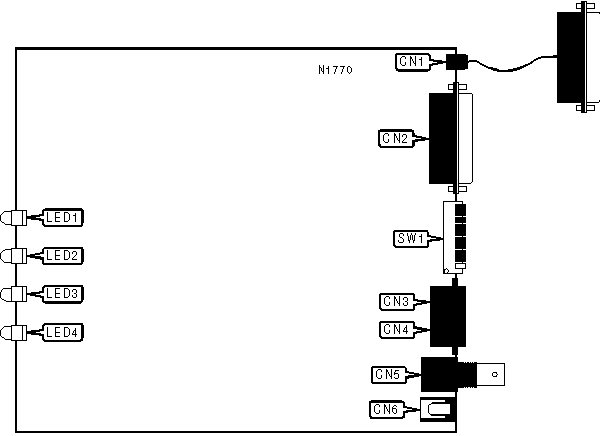

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
To parallel port of computer |
CN1 |
Unshielded twisted pair connector |
CN4 |
|
Parallel port |
CN2 |
RG-62A/U 93ohm coaxial connector |
CN5 |
|
Unshielded twisted pair connector |
CN3 |
10V DC power in |
CN6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Internal terminator disabled |
SW1/1 |
Off |
|
Internal terminator enabled |
SW1/1 |
On | |
|
Note:The terminator must always be disabled on star topology networks. | |||
|
CABLE TYPE | ||
|
Setting |
SW1/2 | |
| » |
RG-62A/U 93ohm coaxial |
On |
|
Unshielded twisted pair |
Off | |
|
NODE ADDRESS | ||||||||
|
Setting |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
1 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
2 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
3 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
5 |
On |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
250 |
Off |
On |
Off |
On |
On |
On |
On |
On |
|
251 |
On |
On |
Off |
On |
On |
On |
On |
On |
|
252 |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
253 |
On |
Off |
On |
On |
On |
On |
On |
On |
|
254 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
Note: A total of 253 node address settings are available. The switches are a binary representation of the decimal node addresses. SW1/10 is the Most Significant Bit and switch SW1/3 is the Least Significant Bit. The switches have the following decimal values: SW1/10=128, SW1/9=64, SW1/8=32, SW1/7=16, SW1/6=8, SW1/5=4, SW1/4=2, SW1/3=1. Turn on the switches and add the values of the switches that are on to obtain the correct node address. (Off=0, On=1)Addresses 0 and 255 are reserved and should not be used. | ||||||||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
Adapter is transmitting/receiving from parallel port |
|
LED1 |
Unidentified |
Blinking |
Adapter is transmitting/receiving from both network and parallel port |
|
LED1 |
Unidentified |
Off |
Adapter is not receiving power or driver not loaded |
|
LED2 |
Unidentified |
On |
Adapter is transmitting/receiving from network |
|
LED2 |
Unidentified |
Blinking |
Adapter is transmitting/receiving from both network and parallel port |
|
LED2 |
Unidentified |
Off |
Adapter is not receiving power or driver not loaded |
|
LED3 |
Unidentified |
On |
Data is being transmitted/received from the computer |
|
LED3 |
Unidentified |
Off |
Data is not being transmitted/received from the computer |
|
LED4 |
Unidentified |
On |
Network connection is good |
|
LED4 |
Unidentified |
Blinking |
Network connection is broken |
