NIC Type	Ethernet
Transfer Rate	10/100Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

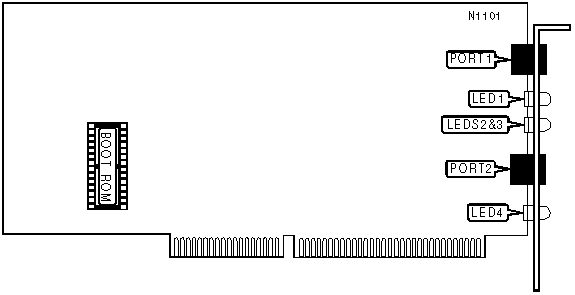

CONNECTIONS
Purpose	Location
100Mbps connector	Port1
10Mbps connector	Port2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Card is operating at 100Mbps
LED1	Green	Off	Card is not operating at 100Mbps
LED2	Amber	On	Data is being transmitted/received
LED2	Amber	Off	Data is not being transmitted/received
LED3	Green	On	Network connection is good
LED3	Green	Off	Network connection is broken
LED4	Green	On	Card is operating at 10Mbps
LED4	Green	Off	Card is not operation at 10Mbps
