NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

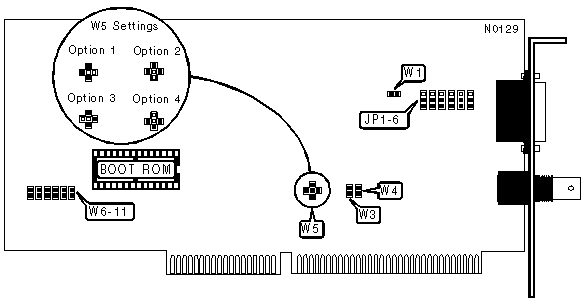

INTERRUPT REQUEST - W5
IRQ		Option #
»	3	Option 3
	2	Option 2
	4	Option 4
	5	Option 1

CABLE TYPE
Type		JP1	JP2	JP3	JP4	JP5	JP6	W1
»	Coaxial	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Pins 1 & 2	Closed
	AUI	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Pins 2 & 3	Open
Note:Pins designated should be in the closed position.

BASE MEMORY ADDRESS
Address		W6	W7	W8	W9	W10	W11
»	CC00h	Closed	Closed	Closed	Open	Closed	Closed
	C800h	Closed	Closed	Open	Closed	Closed	Closed
	D000h	Closed	Open	Open	Closed	Closed	Closed

I/O BASE ADDRESS
Address		W3	W4
»	300h	Closed	Closed
	320h	Open	Closed
	340h	Closed	Open
	360h	Open	Open
