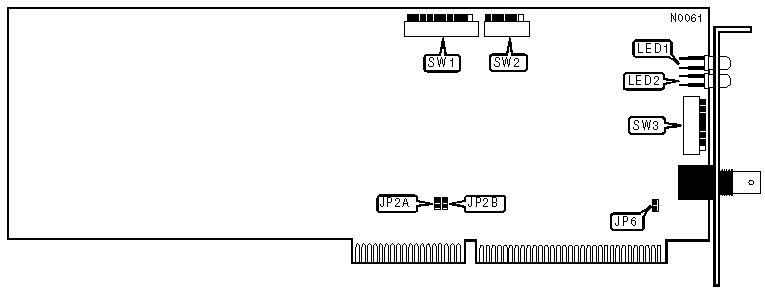

STANDARD MICROSYSTEMS CORPORATION
ARCNET PC500
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
RG-62A/U 93ohm coaxial |
|
Boot ROM |
Not available |
|
NODE ADDRESS |
||||||||
|
Node |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
SW3/5 |
SW3/6 |
SW3/7 |
SW3/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
2 |
On |
Off |
On |
On |
On |
On |
On |
On |
|
3 |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
4 |
On |
On |
Off |
On |
On |
On |
On |
On |
|
251 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
252 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
253 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
254 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
255 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1) |
||||||||
|
RESPONSE & RECONFIGURATION TIMEOUTS |
|||||
|
Response Time |
Idle Time |
Reconfig. Time |
JP2A |
JP2B |
|
|
» |
78µs |
86µs |
840ms |
Closed |
Closed |
|
|
285µs |
316µs |
1680ms |
Closed |
Open |
|
|
563µs |
624µs |
1680ms |
Open |
Closed |
|
|
1190µs |
1237µs |
1680ms |
Open |
Open |
|
TOPOLOGY CONFIGURATION |
|
|
Topology |
JP6 |
|
Star |
Closed |
|
Linear Bus |
Open |
|
I/O BASE ADDRESS |
|||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
|
» |
300h |
On |
On |
On |
On |
Off |
Off |
|
|
200h |
On |
On |
On |
On |
On |
Off |
|
|
210h |
Off |
On |
On |
On |
On |
Off |
|
|
220h |
On |
Off |
On |
On |
On |
Off |
|
|
230h |
Off |
Off |
On |
On |
On |
Off |
|
|
240h |
On |
On |
Off |
On |
On |
Off |
|
|
250h |
Off |
On |
Off |
On |
On |
Off |
|
|
260h |
On |
Off |
Off |
On |
On |
Off |
|
|
270h |
Off |
Off |
Off |
On |
On |
Off |
|
|
280h |
On |
On |
On |
Off |
On |
Off |
|
|
290h |
Off |
On |
On |
Off |
On |
Off |
|
|
2A0h |
On |
Off |
On |
Off |
On |
Off |
|
|
2B0h |
Off |
Off |
On |
Off |
On |
Off |
|
|
2C0h |
On |
On |
Off |
Off |
On |
Off |
|
|
2D0h |
Off |
On |
Off |
Off |
On |
Off |
|
|
2E0h |
On |
Off |
Off |
Off |
On |
Off |
|
|
2F0h |
Off |
Off |
Off |
Off |
On |
Off |
|
|
310h |
Off |
On |
On |
On |
Off |
Off |
|
|
320h |
On |
Off |
On |
On |
Off |
Off |
|
|
330h |
Off |
Off |
On |
On |
Off |
Off |
|
|
340h |
On |
On |
Off |
On |
Off |
Off |
|
|
350h |
Off |
On |
Off |
On |
Off |
Off |
|
|
360h |
On |
Off |
Off |
On |
Off |
Off |
|
|
370h |
Off |
Off |
Off |
On |
Off |
Off |
|
|
380h |
On |
On |
On |
Off |
Off |
Off |
|
|
390h |
Off |
On |
On |
Off |
Off |
Off |
|
|
3A0h |
On |
Off |
On |
Off |
Off |
Off |
|
|
3B0h |
Off |
Off |
On |
Off |
Off |
Off |
|
|
3C0h |
On |
On |
Off |
Off |
Off |
Off |
|
|
3D0h |
Off |
On |
Off |
Off |
Off |
Off |
|
|
3E0h |
On |
Off |
Off |
Off |
Off |
Off |
|
|
3F0h |
Off |
Off |
Off |
Off |
Off |
Off |
|
INTERRUPT REQUEST |
||||
|
IRQ |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
2/9 |
Off |
On |
On |
Off |
|
3 |
Off |
Off |
On |
On |
|
4 |
On |
On |
Off |
On |
|
5 |
Off |
On |
Off |
On |
|
7 |
Off |
Off |
Off |
On |
|
10 |
On |
Off |
On |
Off |
|
11 |
Off |
Off |
On |
Off |
|
12 |
On |
On |
Off |
Off |
|
FACTORY CONFIGURED SETTINGS |
|
|
Switch |
Setting |
|
SW2/1 |
On |
|
SW2/2 |
On |
|
SW2/3 |
Off |
|
SW2/4 |
On |
|
SW2/5 |
On |
|
SW2/6 |
On |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Card is being accessed by host computer |
|
LED1 |
Red |
Off |
Card is not being accessed by host computer |
|
LED2 |
Green |
On |
Data is being transmitted/received |
|
LED2 |
Green |
Off |
Data is not being transmitted/received |
|
LED2 |
Green |
Blinking |
Network is reconfiguring |
