Card Type	Network Interface Card
NIC Type	Ethernet
Boot ROM	Available
Network Transfer Rate	10/100Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	32-bit PCI

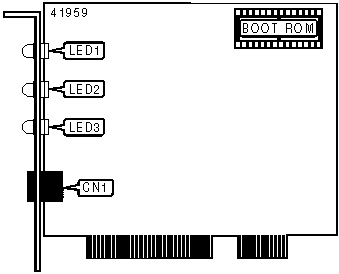

CONNECTIONS
Function	Label
RJ-45 connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	Blinking	Data is being received
LED1	Yellow	Off	Data is not being received
LED2	Green	On	Adapter connected to hub
LED2	Green	Off	Adapter not connected to hub
LED3	Red	On	Network connected to 100Mbps port
LED3	Red	Off	Network not connected to 100Mbps port
