NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	32-bit PCI
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available (location unidentified)

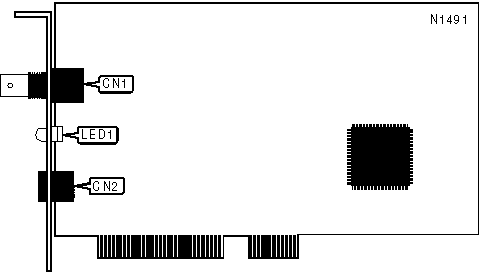

CONNECTIONS
Function	Label	Function	Label
RG-58A/U 50ohm coaxial port	CN1	Unshielded twisted pair port	CN2

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	10Base-T network connection is good
LED1	Off	10Base-T network connection is broken
