NIC Type	Ethernet
Transfer Rate	10/100Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair
Boot ROM	Unidentified

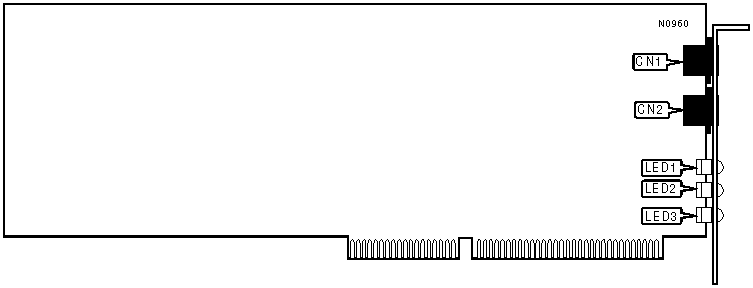

CONNECTIONS
Location	Function
CN1	10Mbps Ethernet connector
CN2	100Mbps Ethernet connector

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	100Mbps connection is good
LED1	Green	Off	100Mbps connection is broken
LED1 & LED2	Green	On	10Mbps connection is good
LED1 & LED2	Green	Off	10Mbps connection is broken
LED3	Yellow	Blinking	Data is being transmitted/received
LED3	Yellow	Off	Data is not being transmitted/received
Note: The brightness of LED3 indicates traffic volume.
