NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	MCA
Topology	Linear bus Star
Wiring Type	Twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

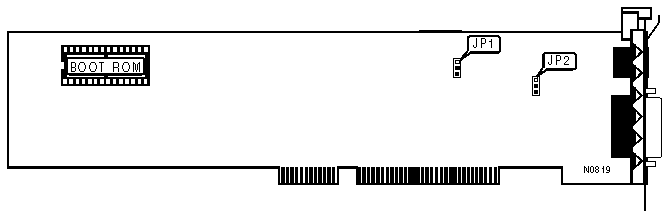

CABLE TYPE SELECT
Setting		JP1
»	Autodetect (Twisted pair)	Pins 1 & 2 closed
	Thick Ethernet	Pins 2 & 3 closed

LINK STATUS SIGNAL SELECT
Setting		JP2
»	Enabled	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed
